Time Relay

staircase switch relay

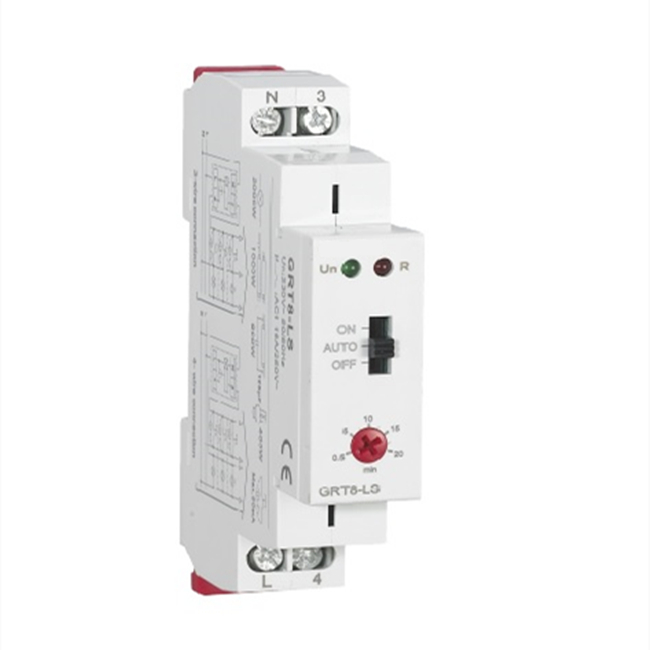

Product description: GRT8-LS AC230V Multifunction Staircase Light Time Switch Staircase Relay Electronic 1SPST 16A Applications -It is used for delayed switching of lights in the corridors, entrances, stairways,
INQUIRY

Applications
-It is used for delayed switching of lights in the corridors, entrances, stairways,
halls or for delayed fi nish of fans (WC, bathroom, etc.).
Function Features
-Operating system switch:
ON - output is constantly ON .
AUTO - timing according to adjusting by potentiometer in range 0.5 - 20 min
OFF - output is constantly OFF.
-Voltage range: AC 230 V, clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

Technical Data

Electrical features

Model NO	GRI8
Function	Current Monitoring Relay
Voltage Range	AC/DC24V-240V OR DC24V
Output	1 SPDT
Supply Terminals	A1-A2
Supply Voltage Tolerance	-15% +10%
Time Setting	Potentionmeter
Supply Indication	Green LED
Output Indication	Red LED
Rated Frequency	50/60HZ
Rated Current	10A/AC1
Protection Degree	IP40 for front Panel / IP20 for Terminals
Weight/pcs	0.1KG/PCS
Standard	EN 61812-1,IEC60947-5-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
