Time Relay

delay on star-delta relay

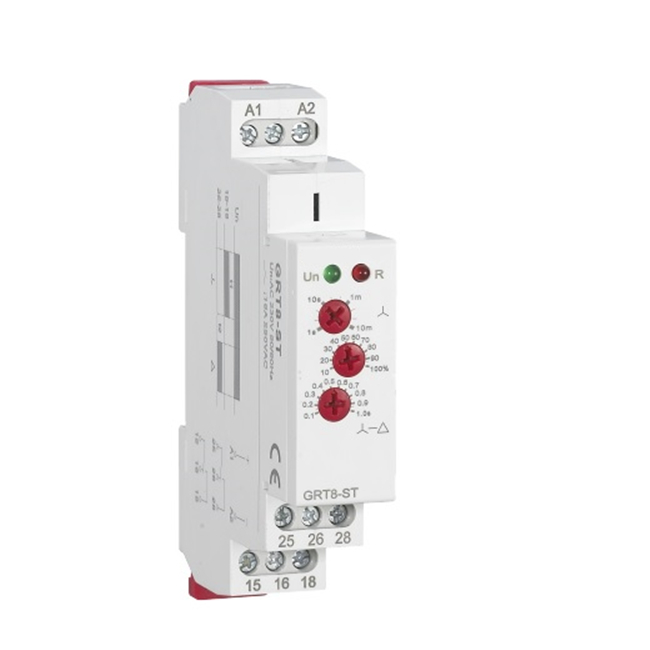

Product description: GRT8-ST AC/DC 12-240V 16A SPDT Delay on Timer Star Delta Starter Price for Motor Starter
INQUIRY

Applications
-Designated for delay ON of motors star delta.

Function Features

-Time t1 (star) :
time scale 0.1 s - 10min devided into 4 time ranges
rough time setting by rotary switch.
-Time t2 (delay) :
time scale 0.1 s - 1 s
time setting by potentiometer
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

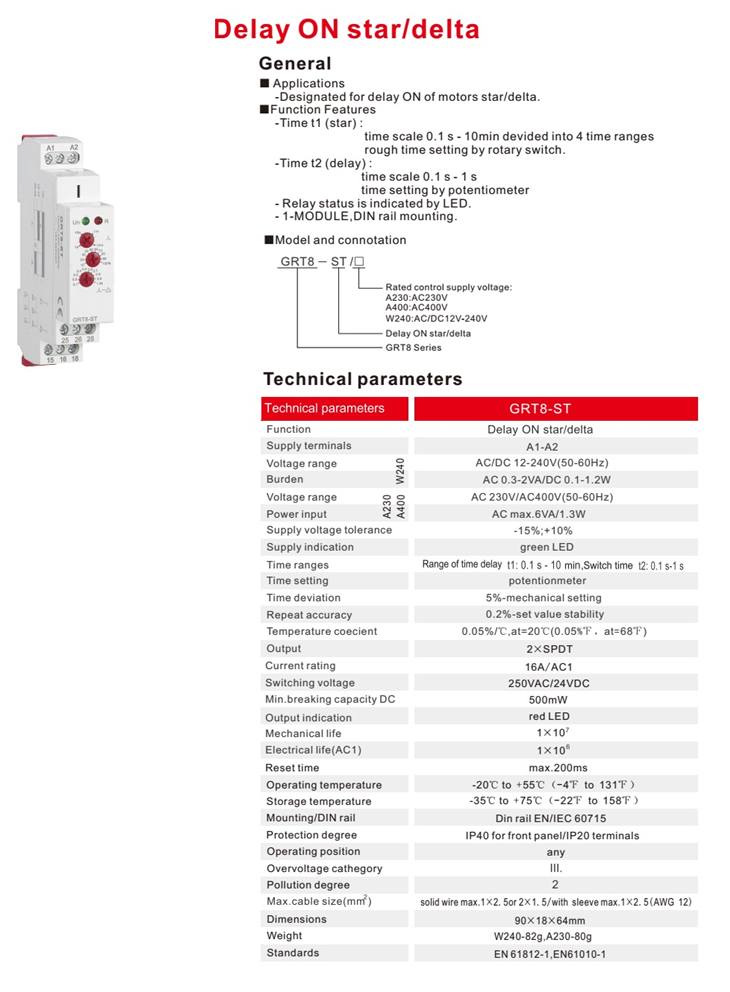

Technical Data

Electrical features

Model NO	GRT8-ST
Function	Delay on Star Delta Relay
Voltage Range	AC230V (A230) OR AC/DC12V-240V OR AC415V
Output	2 SPDT
Supply Terminals	A1-A2
Supply Voltage Tolerance	-15% +10%
Glow Tubes Connections	Voltage range: AC 230V Yes(A1-S)
Supply Indication	Green LED
Output Indication	Red LED
Rated Frequency	50/60HZ
Rated Current	16A/AC1
Protection Degree	IP40 for front Panel / IP20 for Terminals
Weight/pcs	0.1KG/PCS
Standard	EN 61812-1,IEC60947-5-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
