Time Relay

double delay time relay

Product description: Applications -For gradual switching of heavy powers (e.g. el.heating), prevents current strokes in the main.
INQUIRY

Applications
-For gradual switching of heavy powers (e.g. el.heating), prevents current
strokes in the main.
Function Features
- 2x Delay ON (2 time relays in one)
-Time scale 0.1s - 10 days divided into 10 time ranges:
0.1s - 1s / 1s - 10s / 0.1min - 1min / 1min - 10min / 0.1h - 1h / 1h - 10hrs
/ 0.1 day - 1 day / 1 day - 10 days / ON / OFF.
-Times t1 and t2 are independantly adjustable.
- t1 and t2 are switched on after supply voltage connection
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

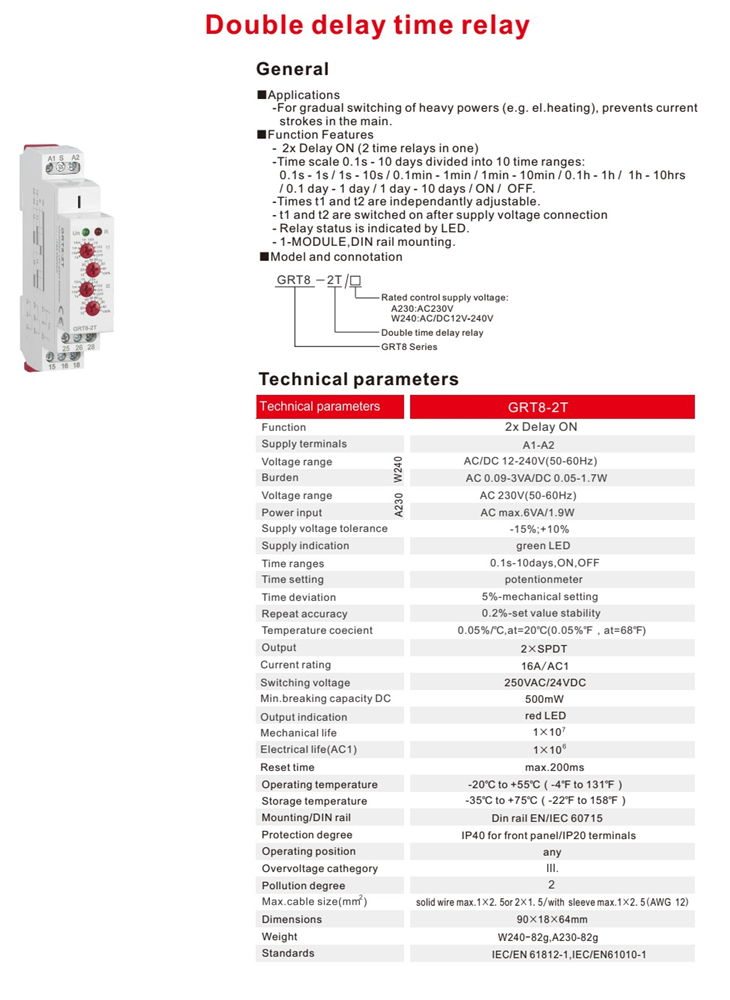

Technical Date

Electrical features

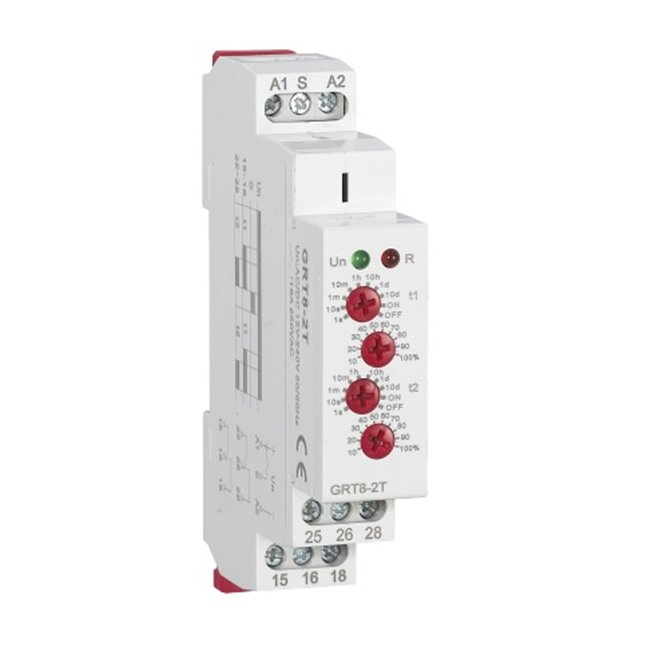

Model NO	GRT8-2T
Function	2 Delay ON Time Relay
Voltage Range	AC230V (A230) OR AC/DC12V-240V (W240)
Output	2 SPDT
Supply Terminals	A1-A2
Time Range	0.1s-10days,ON,OFF
Time Setting	Potentionmeter
Supply Indication	Green LED
Output Indication	Red LED
Rated Frequency	50/60HZ
Rated Current	16A
Protection Degree	IP40 for front Panel / IP20 for Terminals
Weight/pcs	0.1KG/PCS
Standard	IEC6947-5-1 EN61812-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
