Voltage Relay

voltage protector relay

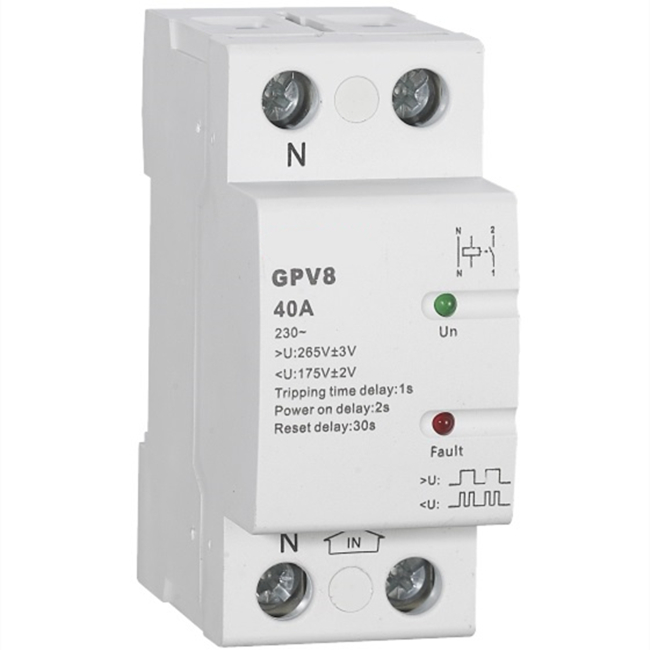

Product description: GPV8 High Quality Voltage Protector Over-Voltage Protection Circuit Breaker for Self Reset after Fault
INQUIRY

Applications
-Overvoltage and undervoltage protection for household equipment.
Function Features
-Supply voltage measurement and protection.
- Double bus wiring design stronger ability.
-Self reset after fault.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

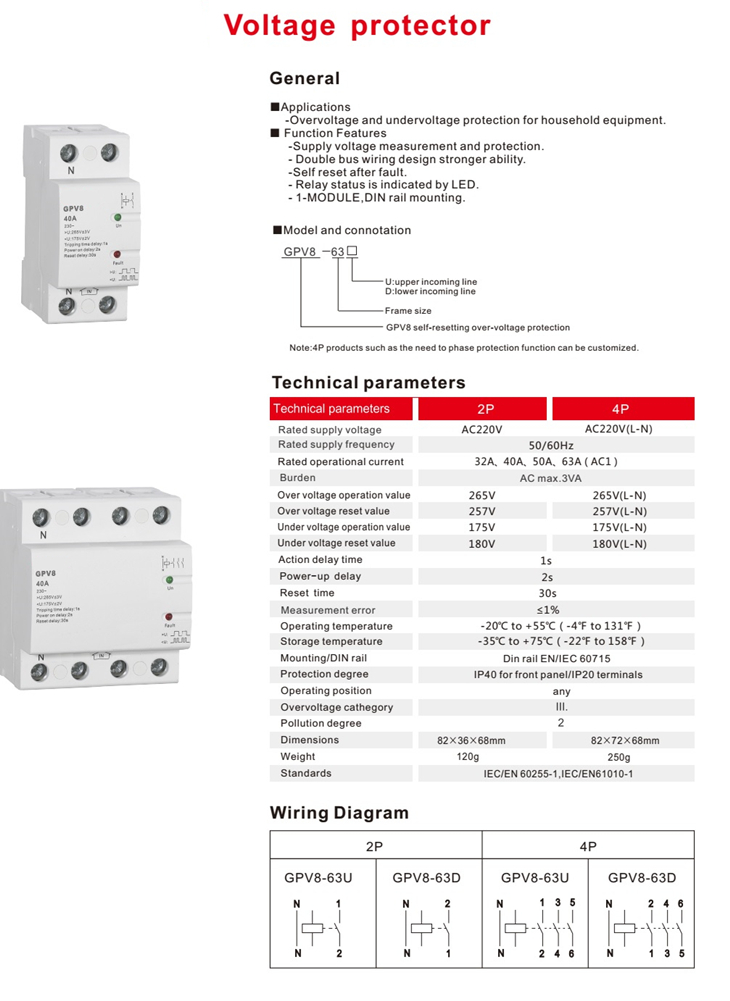

Technical Data

Electrical features

Model NO	GPV8 2P & 4P
Function	Automatic Over Under Voltage Protection
Voltage Range	AC220V
Burden	AC max. 3VA
Over voltage operation value	265V
Over voltage reset value	257V
Under voltage operation value	175V
Under voltage reset value	180V
Action delay time	1s
Power- up delay	2s
Reset time	30s
Measurement error	≤1%
Rated Frequency	50/60HZ
Rated Current	32A 40A 50A 63A
Protection Degree	IP40 for front Panel / IP20 for Terminals
Weight/pcs	0.1KG/PCS
Standard	EN 60255-1,IEC60947-5-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
