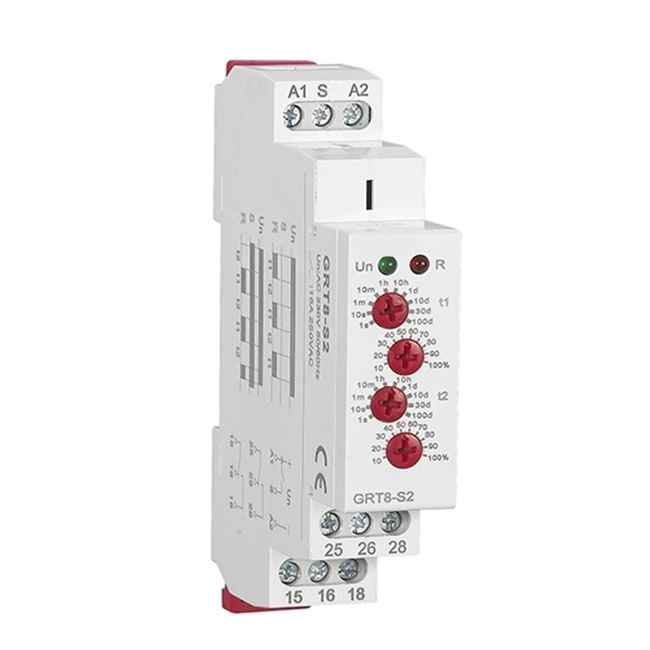

single and multi function time relay

Applications
    -It is used for regular room ventilation, cyclic dehumidifi cation, light control,
    circulating pumps, noon signs, etc.
Function Features
    -2 time functions:
    -Cycler beginning with pulse
    -Cycler beginning with pause
    -Function choice is done by an external jumper of terminals S-A1.
    -Time scale 0.1 s - 100 days devided into 10 time ranges:
    (0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h
    / 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days /
    10 days - 100 days).
    -Relay status is indicated by LED.
   -1-MODULE,DIN rail mounting.

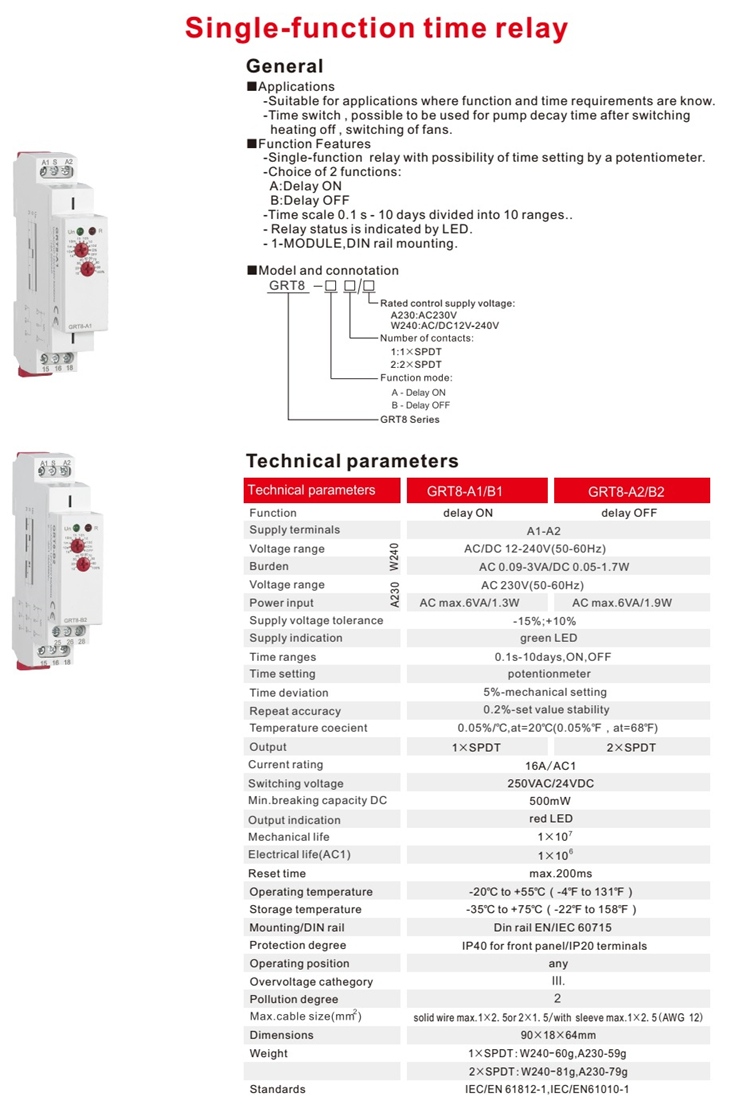

Technical Data

Electrical features
