Time Relay

Delay off without supply voltage

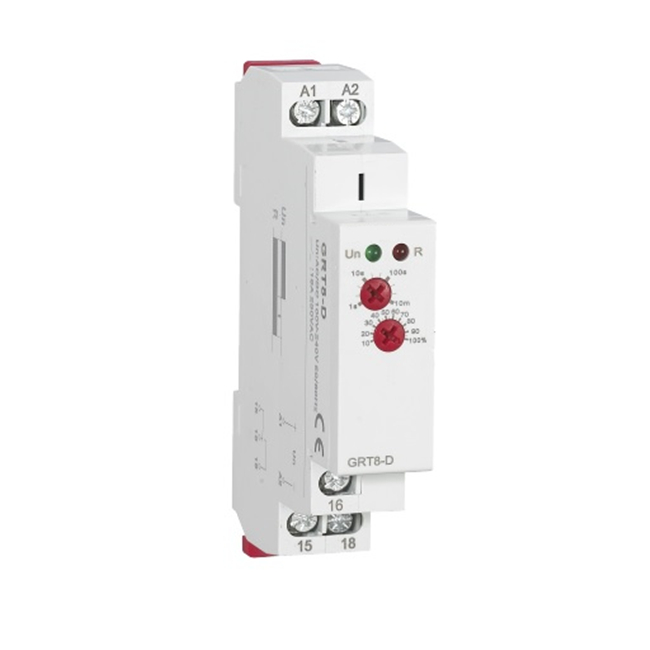

Product description: GRT8-D Delay Off Timer without Supply Voltage 12V Time Delay off Switch Delay Timer AC 220 Volts
INQUIRY

Applications
-Back-up source for Delay OFF in case of voltage failure (emergency lighting,
emergency respirator,or protection of el. controlled doors - in case of fi re).

Function Features
-Time range (adjustable by rotary switch and fi ne setting by potentiometer):
0.1 s - 10 min.

-Voltage range: AC/DC12-240V , clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

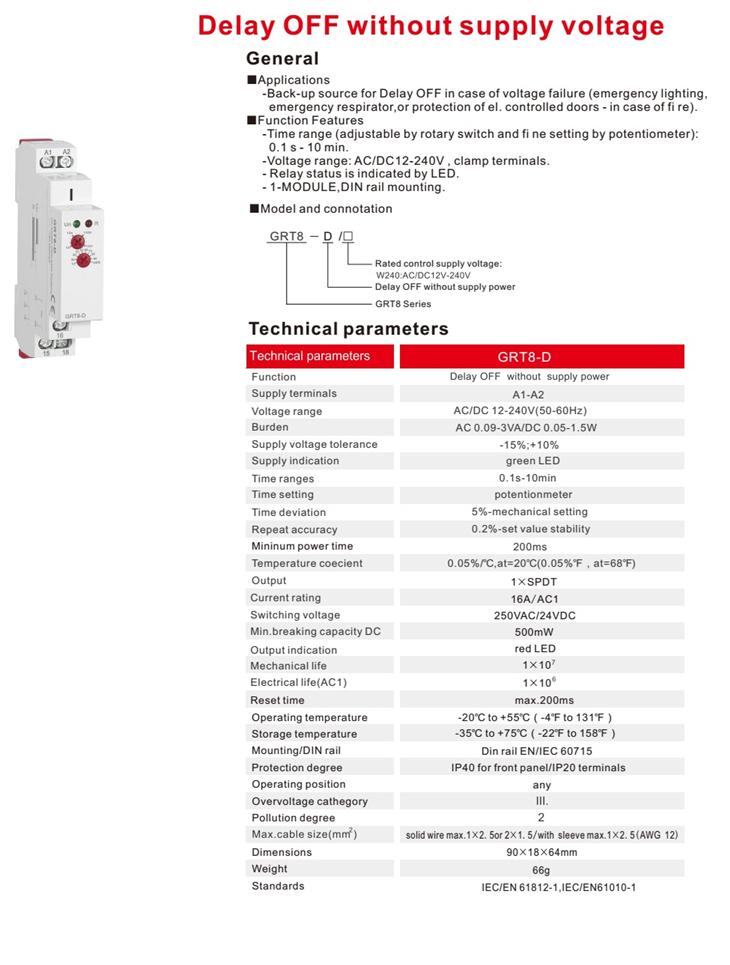

Technical Data

Electrical features

Model NO	GRT8-D
Function	Delay off without Supply Power
Voltage Range	AC/DC24V-240V
Output	1 SPDT
Supply Terminals	A1-A2
Supply Voltage Tolerance	-15% +10%
Time Setting	Potentionmeter
Supply Indication	Green LED
Output Indication	Red LED
Rated Frequency	50/60HZ
Rated Current	16A/AC1
Protection Degree	IP40 for front Panel / IP20 for Terminals
Weight/pcs	0.1KG/PCS
Standard	EN 61812-1,IEC60947-5-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
