Split Core Current Transformer

FSCT Outdoor WaterProof Split

Product description: Outdoor current transformer has been specially designed to facilitate their installation in new or already existing networks. They may be installed without opening any cable or bus-bar circuit. An int
INQUIRY

What is meant by turn compensation?

Turn compensation is the process to maintain the no of turns one or two less than that obtained by normal ratio. This technique is used to reduce the current ratio error in CT.

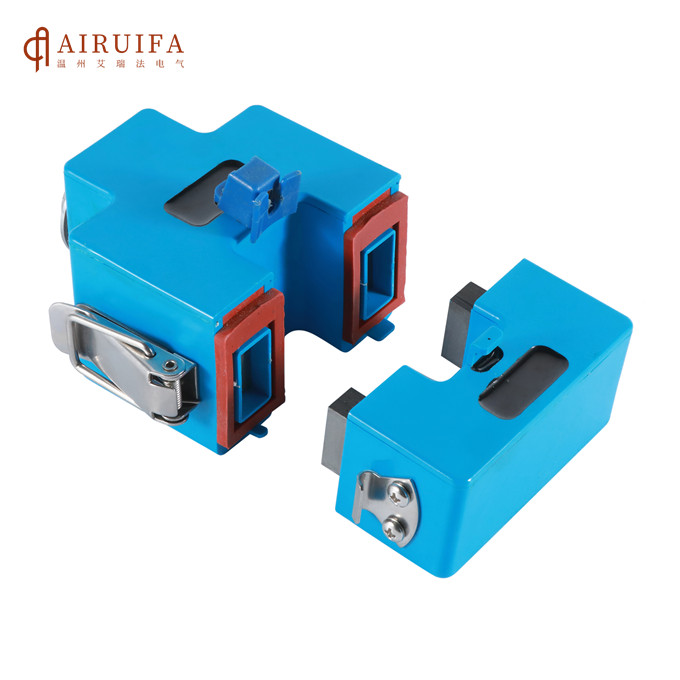

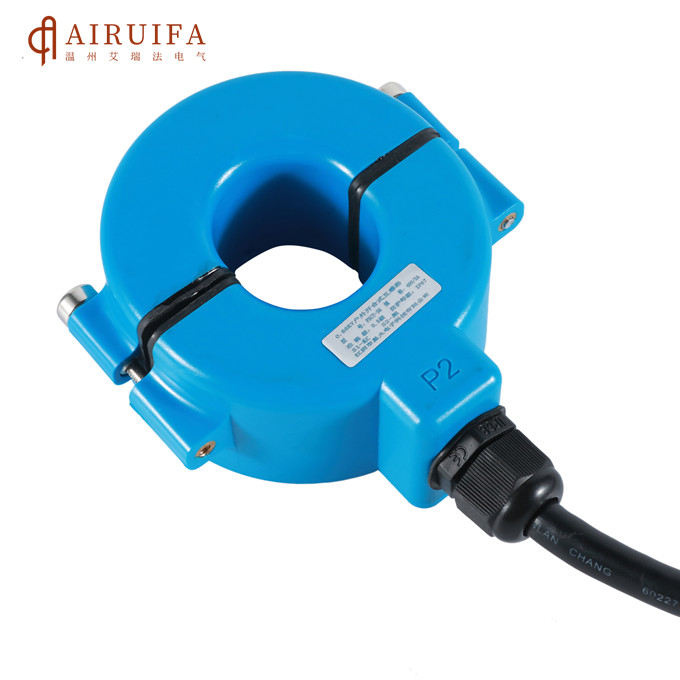

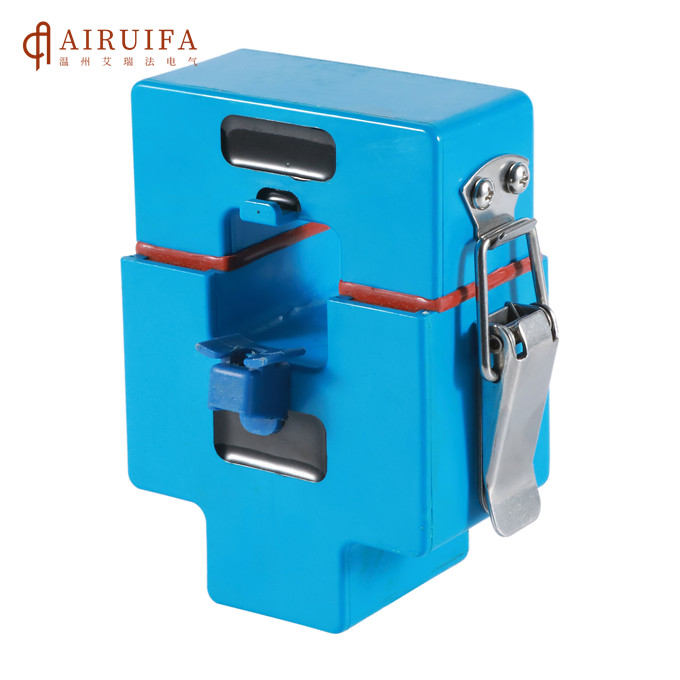

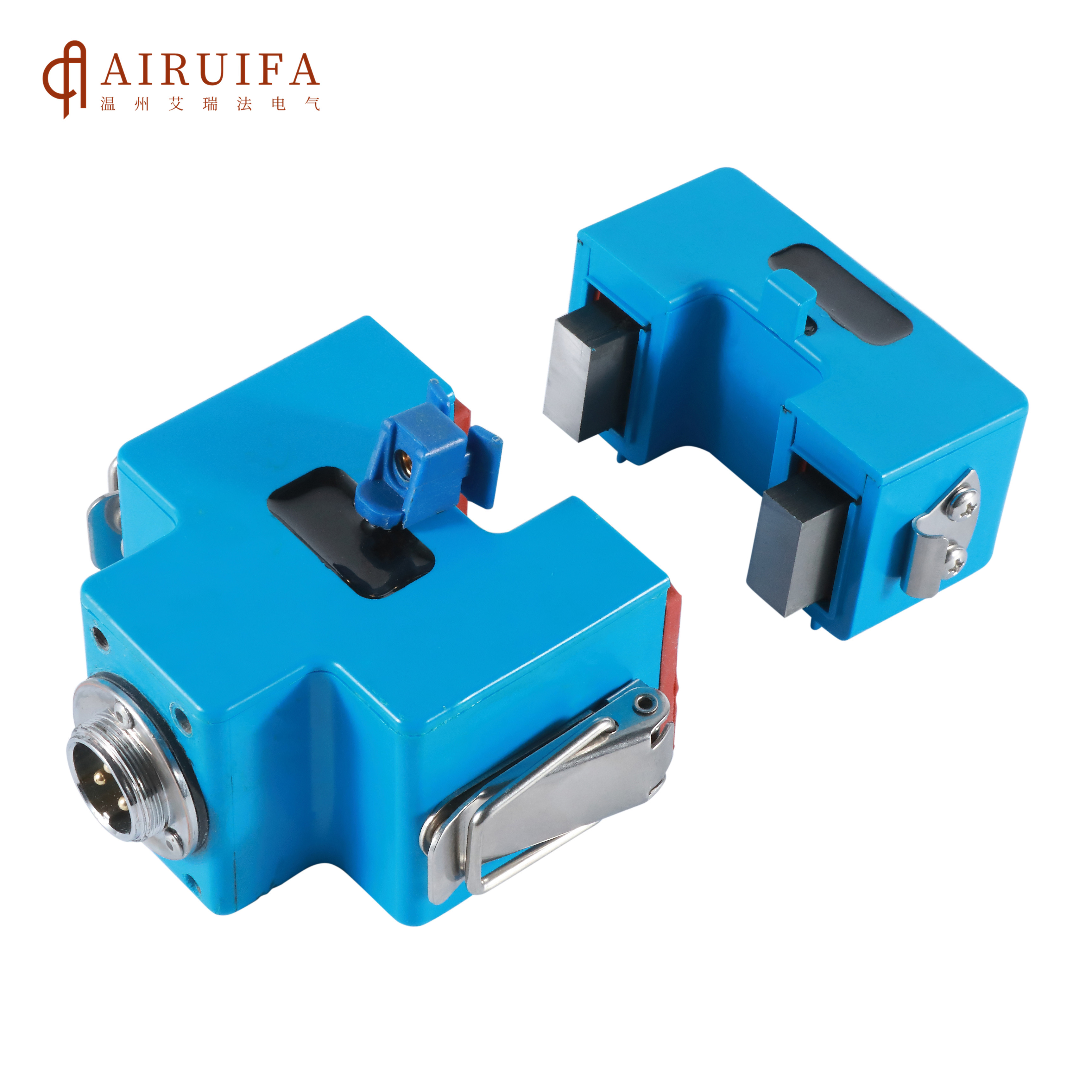

FSCT-40mm Waterproof Split Core Current Transformer

Outdoor current transformer has been specially designed to facilitate their installation in new or already existing networks. They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage or current output. It can save time and the installation cost

Application:
Current measurement, monitoring and protection for electrical wiring and equipment Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation-control system Current, power and energy monitoring device

Model	WSCT-36
Standards	GB 20840 (IEC 61869), GB4208
Equipment maximum voltage	1v
IP rating	IP67
Rated current	100-800 Arms
Max current	800 Arms
Turns	100-3000T
Accuracy class	0.5, 1.0
Rated output	5A
Wire lead	2.5mm2 wire
Insulation strength	3KVVAC/min
Insulation impedance	DC500V/100MΩ
Rated frequency	50-400HZ
Working temperature	—25℃~50℃
Storage temperature	—30℃~90℃
