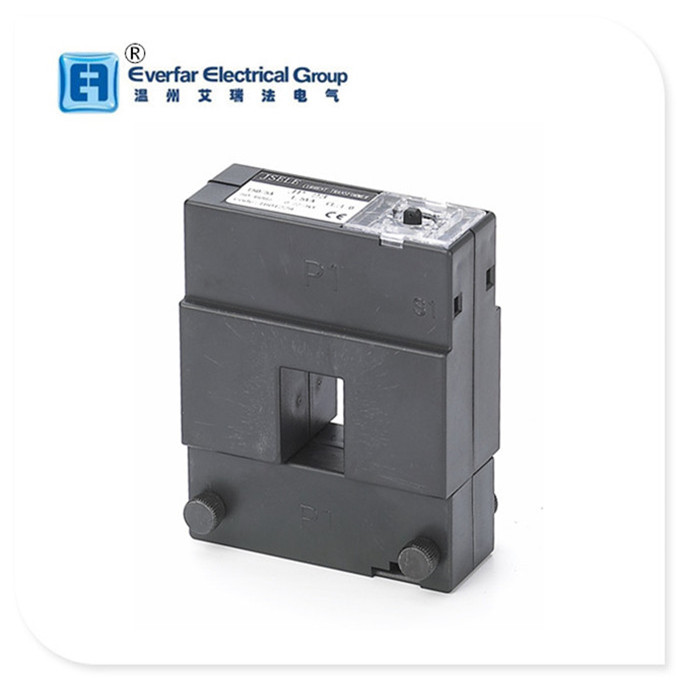

TP Square Split Core CT

What is Split Core Current Transformer?

split core current transformer Manufacturers & Suppliers
The split core current transformer is designed for electrical metering applications specifically designed to be installed around primary current-carrying conductors without disconnecting wires or breaking the monitoring circuit. These current transformers are the best solution for applications in energy measurement and management.
Split core current transformer produced for easy installation in applications like portable metering.

---

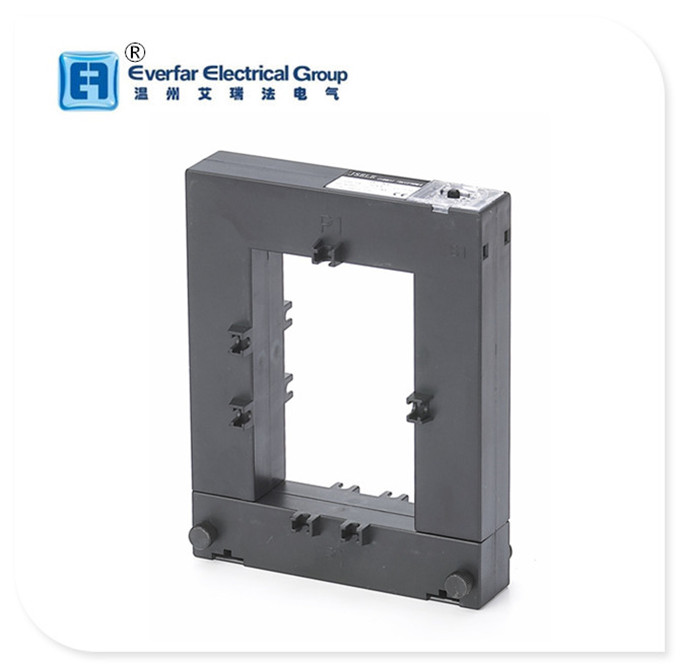

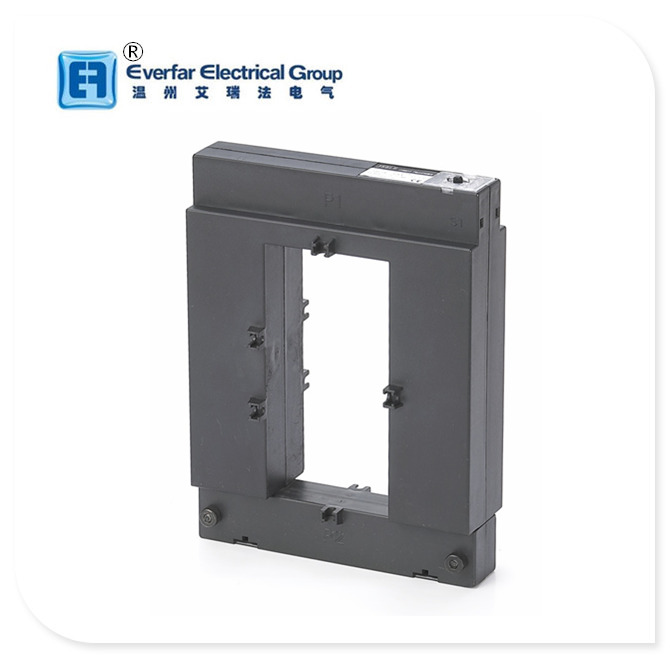

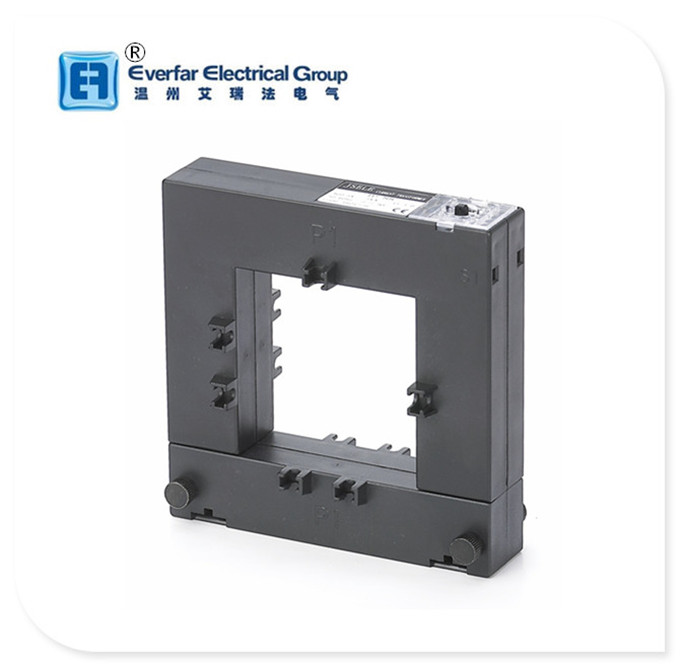

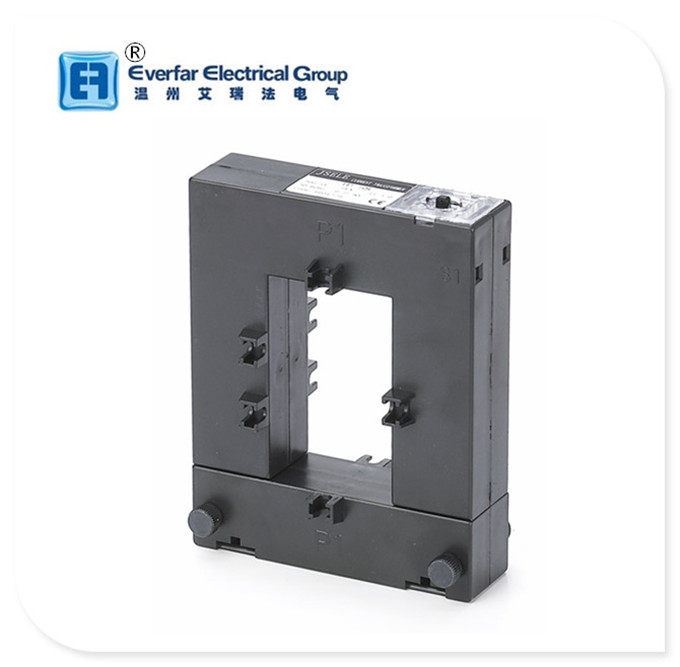

Split core current transformers TP series

The TP series of current transformers have been especially designed to facilitate their installation in new or already existing networks. Thanks to its split core they may be installed without opening any cable or bus bar circuit.
The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bus bars through the transformer core or to connect such cables to the primary terminals. The TP series transformers core may be easily opened and they may be installed and connected without any supply interruption,thus saving time and installation costs.

The main features of DP transformers are:
1.Small size and easy mounting
2.Wide inner window,allowing clamping of big cables or bus bars
3.Wide range of sizes to accomodate all the existing installations
4.High accuracy and reliability
