Combined type mini current transformer

Miniature current transformers are divided into miniature current transformers and miniature voltage transformers.Electric power industry equipment, generally used in various electrical instruments for measurement and protection.Compared with the ordinary mutual inductor, the miniature mutual inductor has the characteristics of small size (it can reach the size of fingernail) and high accuracy (the ordinary mutual inductor has four accuracy levels of 0.5, 0.5s, 0.2 and 0.5s, and the miniature mutual inductor can reach the level of 0.1).

---

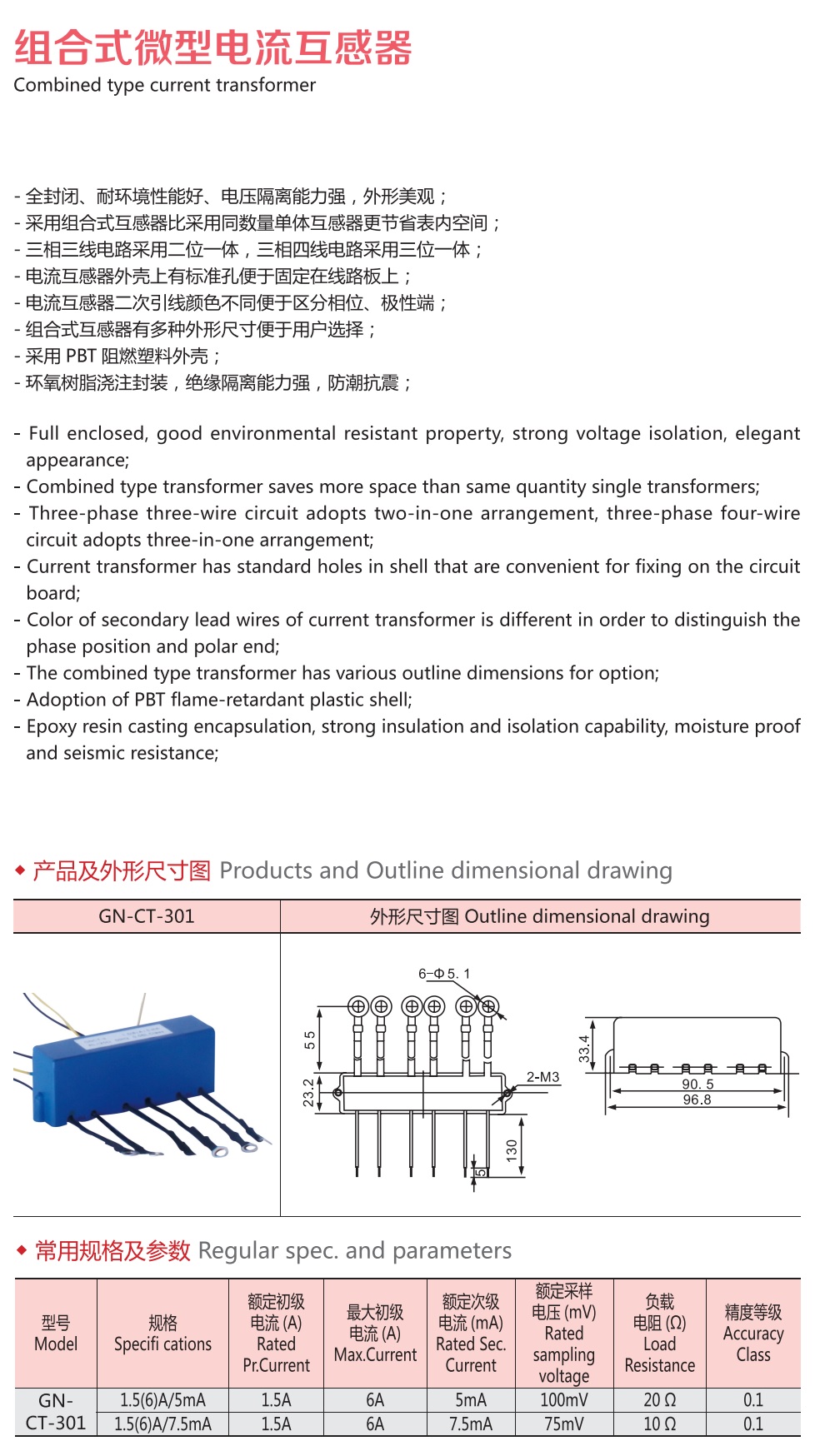

Combined miniature current transformer
Fully enclosed, good environmental performance, strong voltage isolation ability, beautiful appearance;
Using the combined type transformer is more economical than using the same number of single transformers.
Three - phase circuit USES two - position one, three - phase four - wire circuit USES a trinity;
The current transformer housing has standard holes for fixing on the circuit board;
Different colors of the secondary leads of the ct are used to distinguish the phase and polarity ends.
The combined transformer has a variety of dimensions for users to choose.
PBT flame retardant plastic shell is adopted.
Epoxy resin pouring package, strong insulation ability, moisture-proof and seismic.
