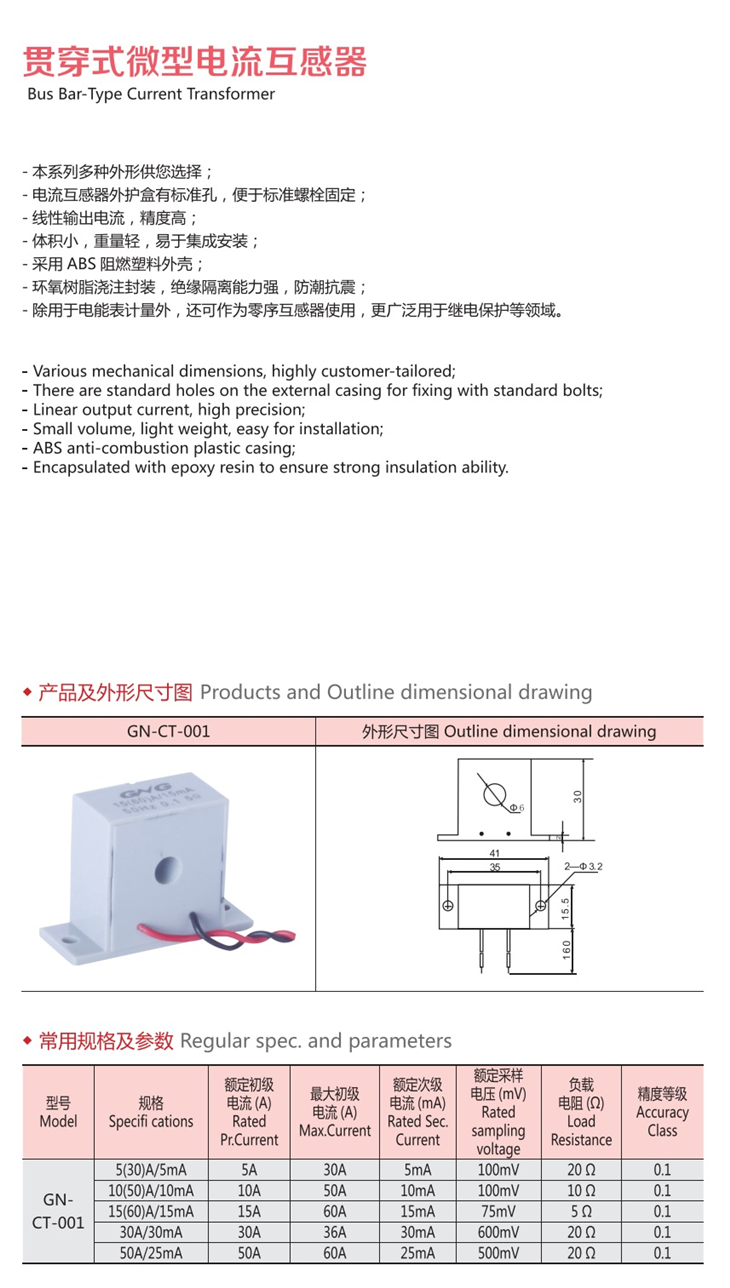

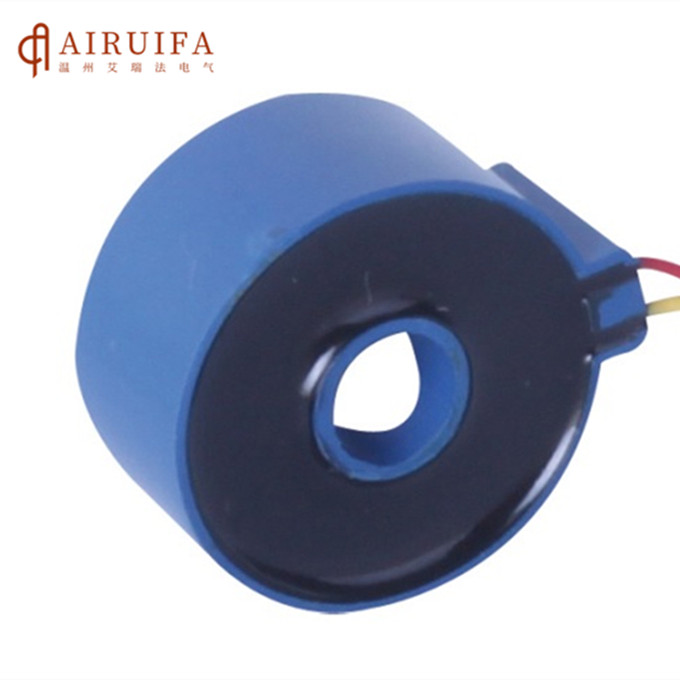

Busbar type mini current transformer

Busbar type miniature current transformers can be easily assembled by screwing. We can provide built-in or removable busbar type CTs. The miniature current transformers have high linearity and low phase error. We provide different options for encapsulations, through-hole size, turns ratio, and so on. Due to different kinds of technical, we provide DC immune type or AC type miniature current transformers with different prices.

Features
A variety of encapsulations
High linearity over the whole current range
High permeability nanocrystalline & amorphous core inside
Accuracy up to 0.05 or 0.1 class, low phase error
Meet the standard IEC 62053, JB/T10665
Applications
Electrical measuring instruments
Electrical protective devices
Current sensing modules
