MBO Equal to ASK CT

What is the burden on C.T?
The burden of CT is the maximum load (in VA) that can be applied to the secondary of CT.
It can be expressed in two ways. The burden is expressed as the total impedance (in ohm) of the circuit.
It can also be expressed as total volt-ampere (VA) and power factor at a certain value of voltage or current and frequency.

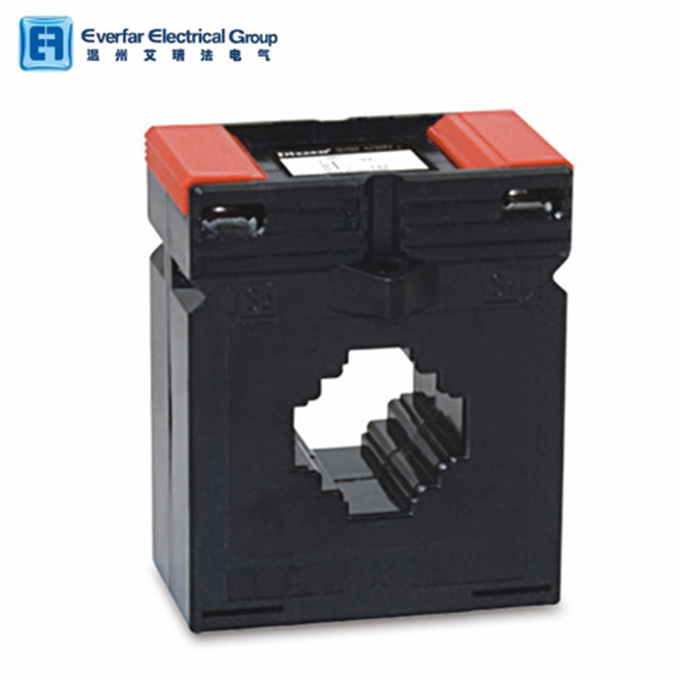

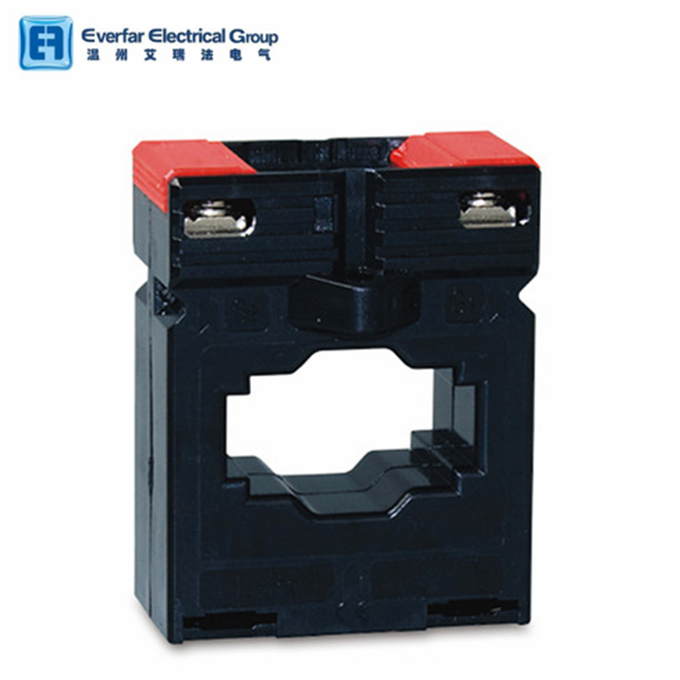

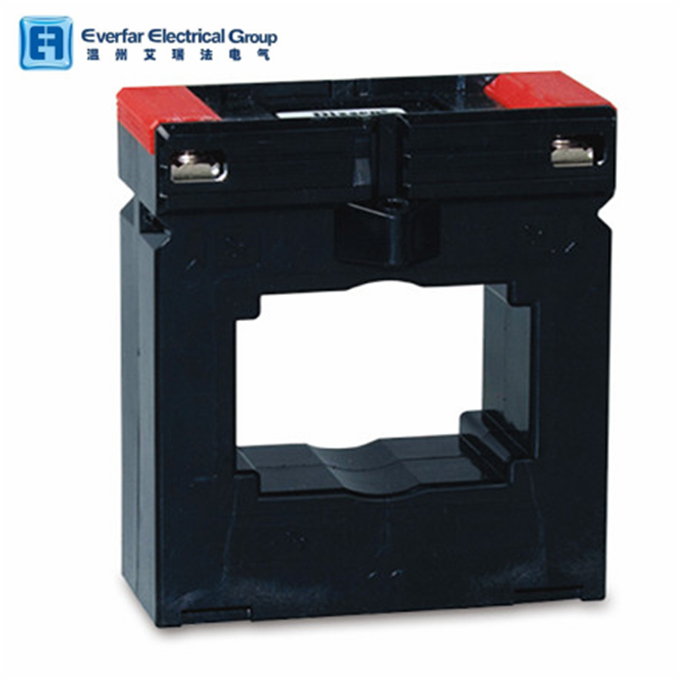

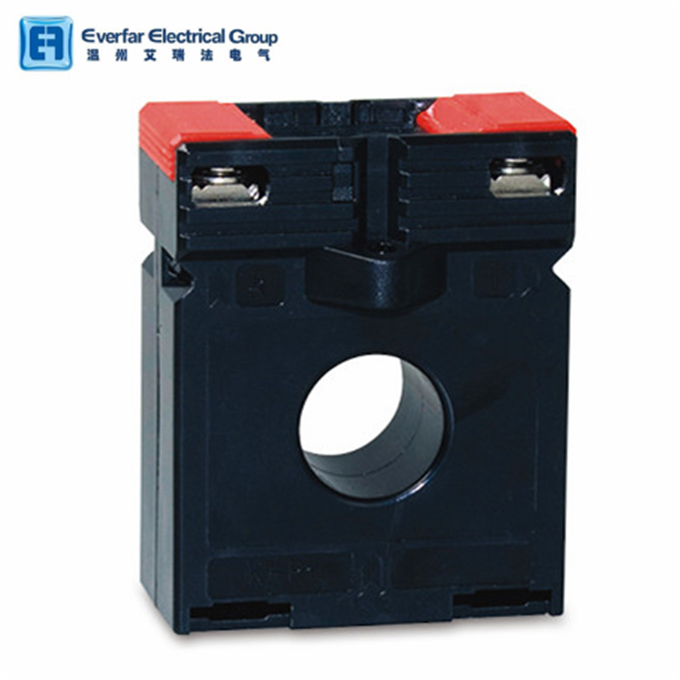

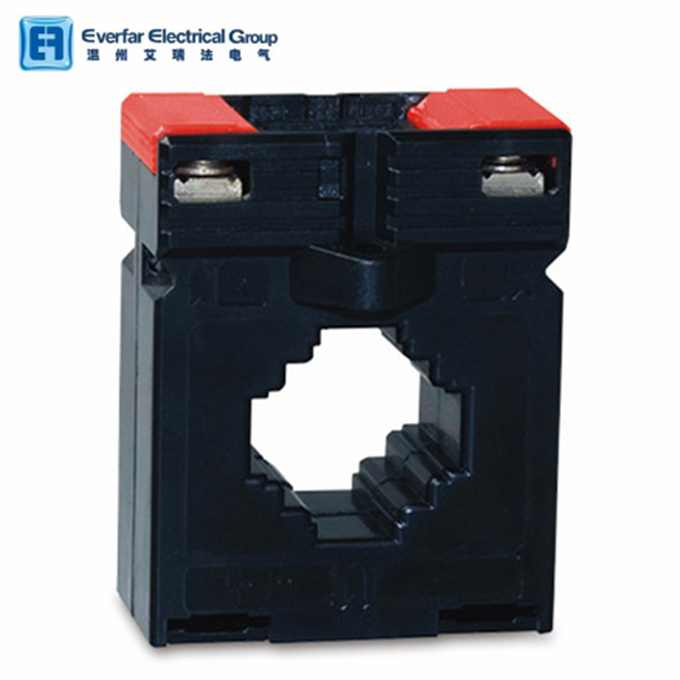

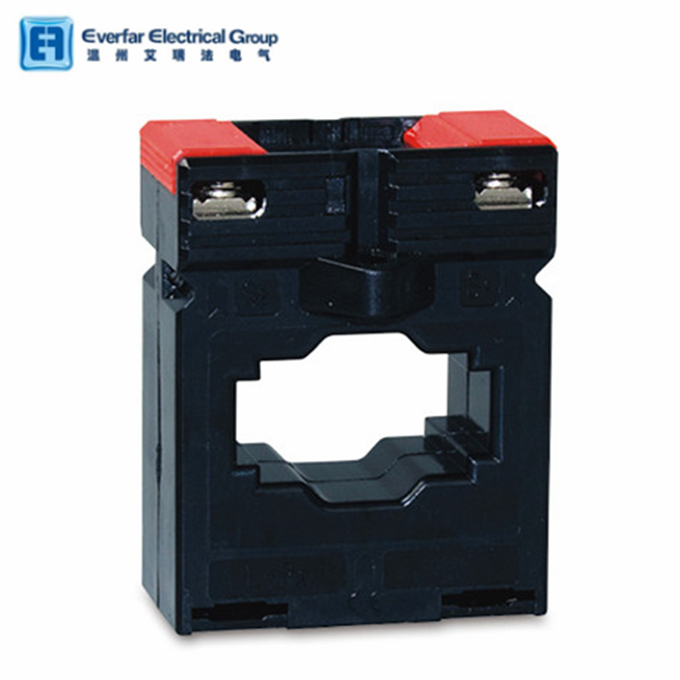

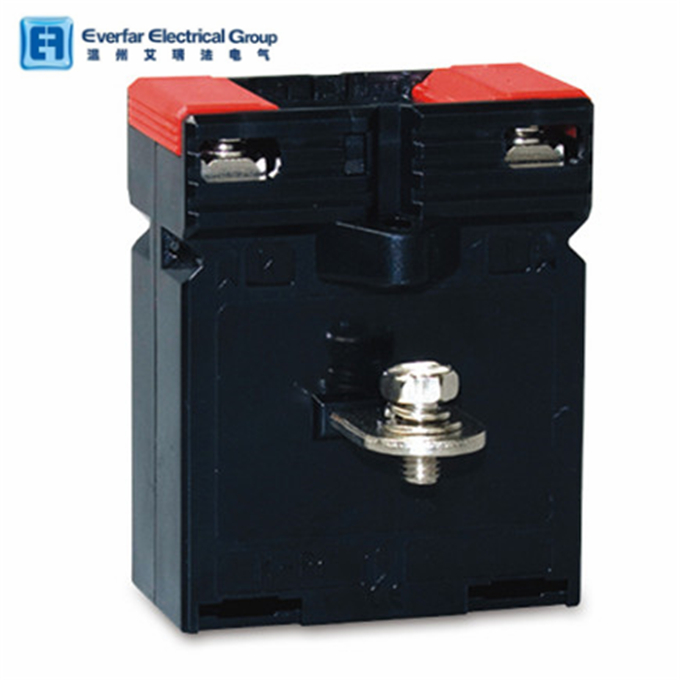

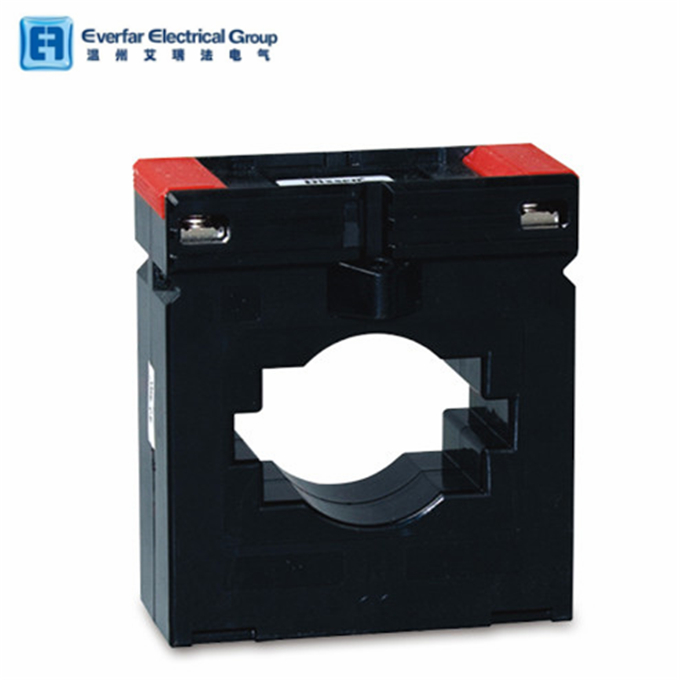

MBO Series (9 frames) perfect designed plastic case current transformer, advanced snap on body, high accuracy

(up to Class 0.2S), humanization transparent cover and lead seal hole design makes the CT very easy to indentify
after long term use and perfect anti-stealing electricity.

Applications:

1:Current measurement, monitoring and protection for electrical wiring and equipment.
2:Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system,
air-condition equipment and automation - control system.
3:Current, power and energy monitoring device.
4:Relay protection device.
