DM Equal to IME MINI CT

What are the basic differences between CT and PT?

These are the main difference between Current Transformer and Potential Transformer:
1.C.T is connected in series with HT line whereas P.T is connected in parallel in HT line.
2.In C.T, the No. of turns become inversely proportional to current whereas in P.T No. if turns become directly proportional to the voltage.
3.In CT the primary has one or more turns of thick conductor and the secondary has large no. of turns of the thin conductor whereas in PT the primary has large no. of turns of thin    conductors and secondary has few no. of turns of thick wires.
4.C.T is step-up instrument transformer which steps down the current whereas P.T is a step down instrument transformers which step down the voltage up to measuring range.

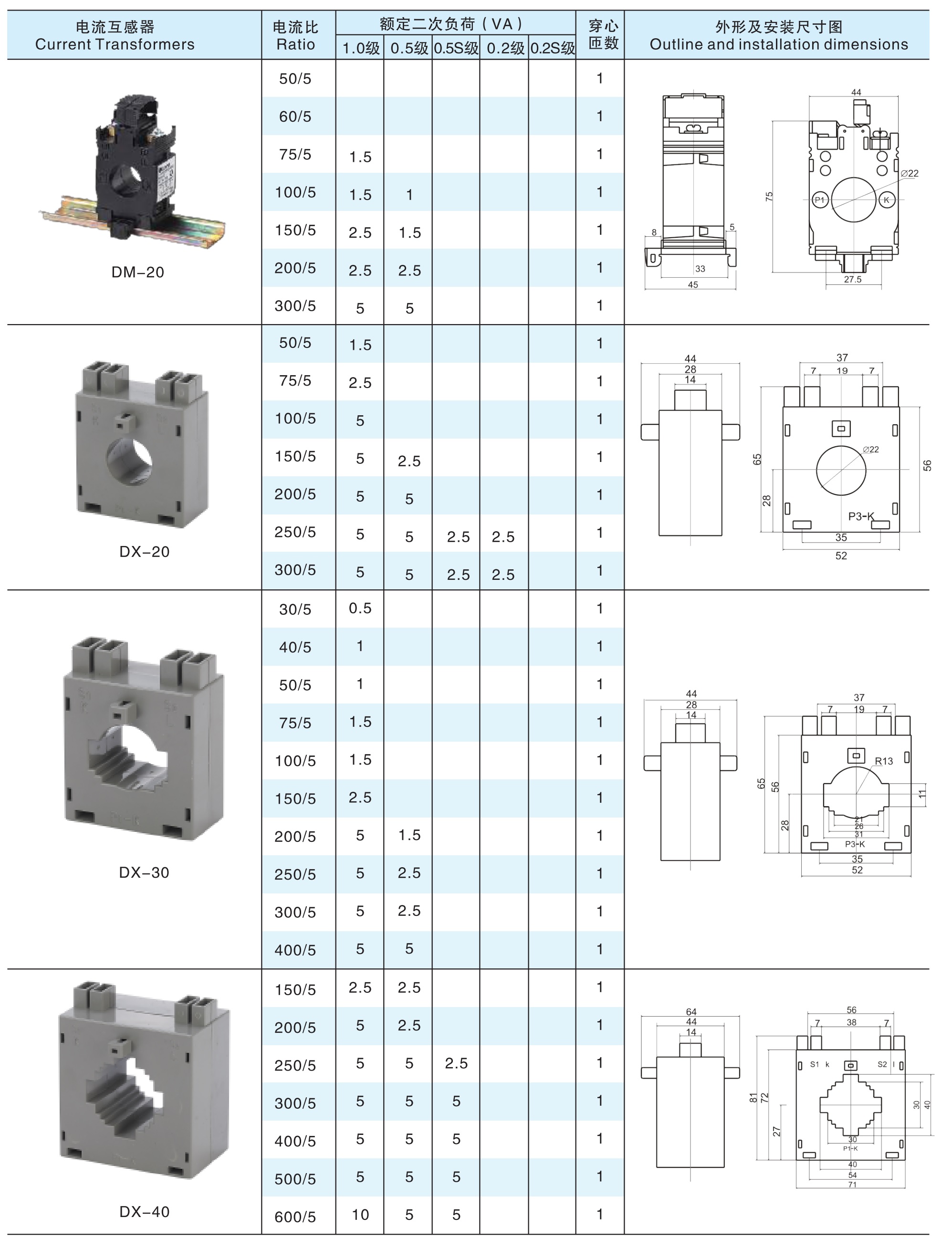

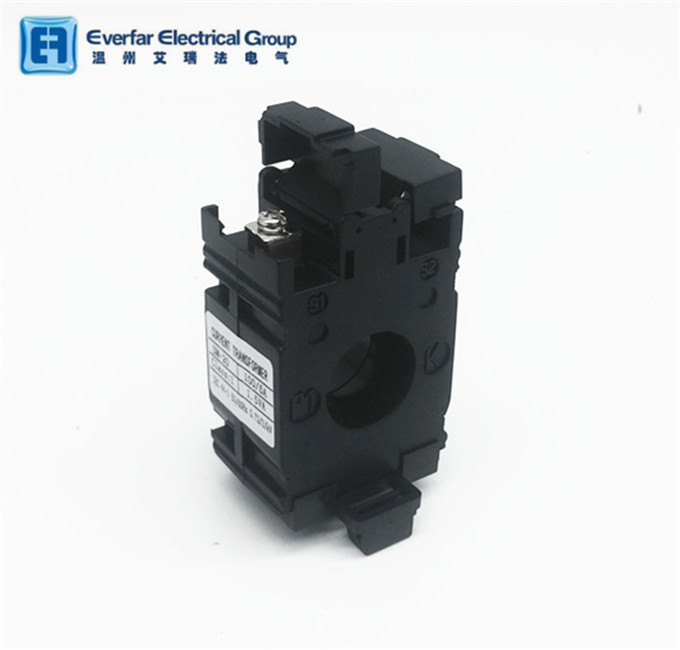

The DM-20 is a cost effective, compact current transformer. It is supplied with a DIN Rail adaptor, features a built in hinged terminal cover and has proven to be one of our most popular current transformers. N.B. No CT cable is supplied with this product, please select the optional extra below if required.
Unsure of your cable diameter, click here to view our Cable Size & Current Rating Chart.

Feature:
1:AC circuit

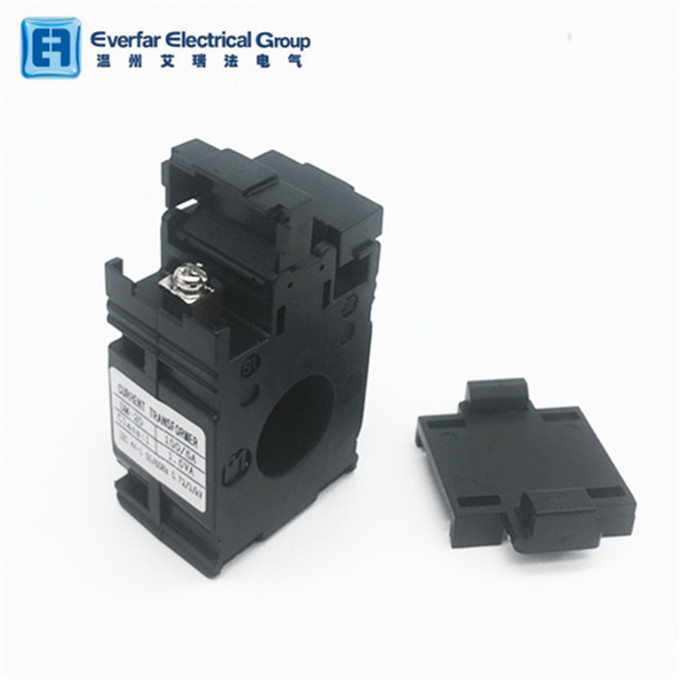

2:Two built in fixing methods: DIN rail; Busbar mounting
3:Built in hinged terminal cover
4:Compact design
5:Primary current from 15A to 300A.
6:The DM series of current transfomer are convenient for mounting in many ways.
7:The most current transformer need the special mounting and the DM series used
the mounting of DIN typing without a lot of time.
8:The protective cover for the terminal block used the switching device with safety and quick
