TASN Three Phase CT

What is a three phase transformer?

A three phase transformer is a three-legged iron core. Each leg has a respective primary and secondary winding. Most power is dispersed in the form of three-phase AC. Basically the power company generators produce electricity by rotating 3 coils or windings through a magnetic field within the generator.

What are the uses of three phase transformer?
Three phase transformers are designed to supply electric power to three-phase systems. These electrical devices have three circuit conductors and may or may not have a neutral wire. Three phase power is used by electric power distribution grids and to power large motors and other large loads.

---

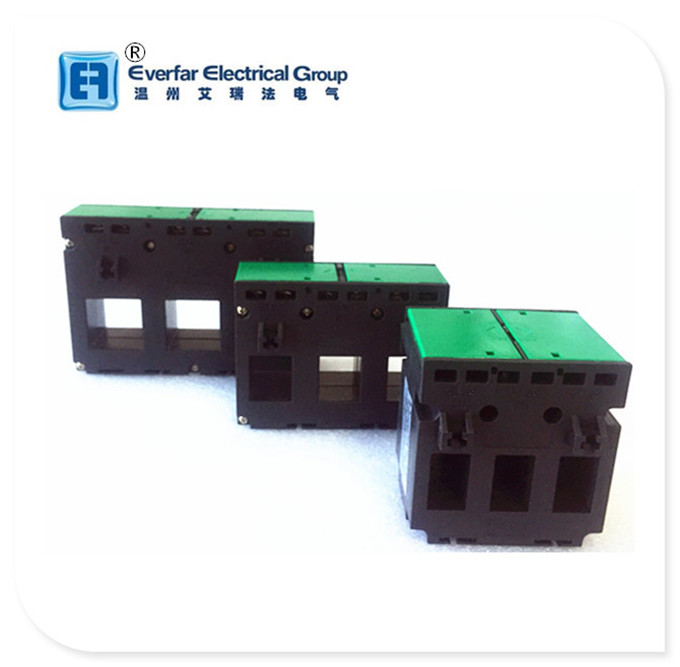

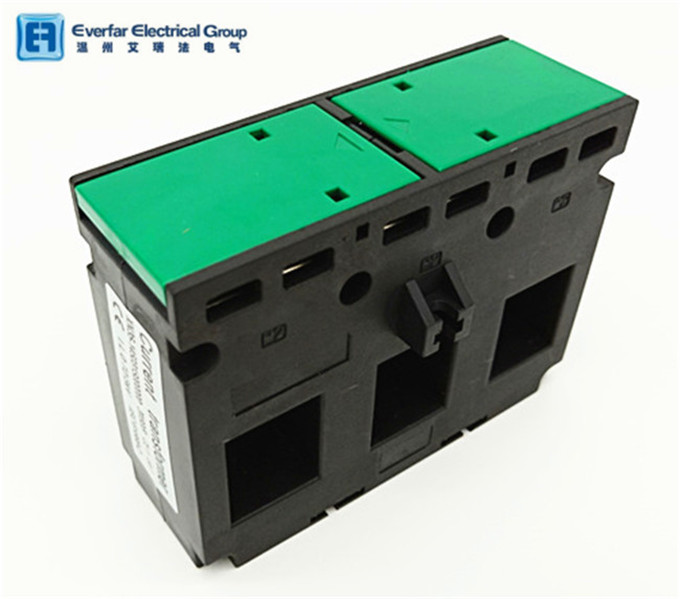

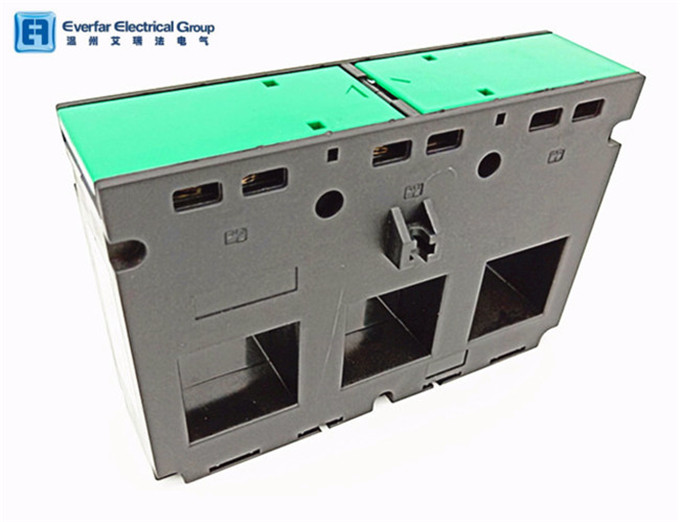

New  Three phases  Current Transformer(M3N1)

3 in 1 current transformer is designed for used at the top of MCCB,the current transformer save a lot space and time.
Three phases (M3N1) current transformer suitable for primary ranged from 100A to 1200A with 5A secondary. Allowing installation directly on top of moulded case circuit breakers for greater speed of installation and optimisation of space. Applicable MCCB: ABB Isomax series, Merlin Gerlin NS series, Changshu CM1 series.

Specification / High quality triple current transformers

1.System voltage 720V 50-60Hz
2.Test voltage 3kV for 1 minute
3.Thermal short circuit current (Ith) 60 x In
4.Dynamic short circuit current (Idyn) 2.55 x Ith
5.Flame retardant polycarbonate UL94V-0

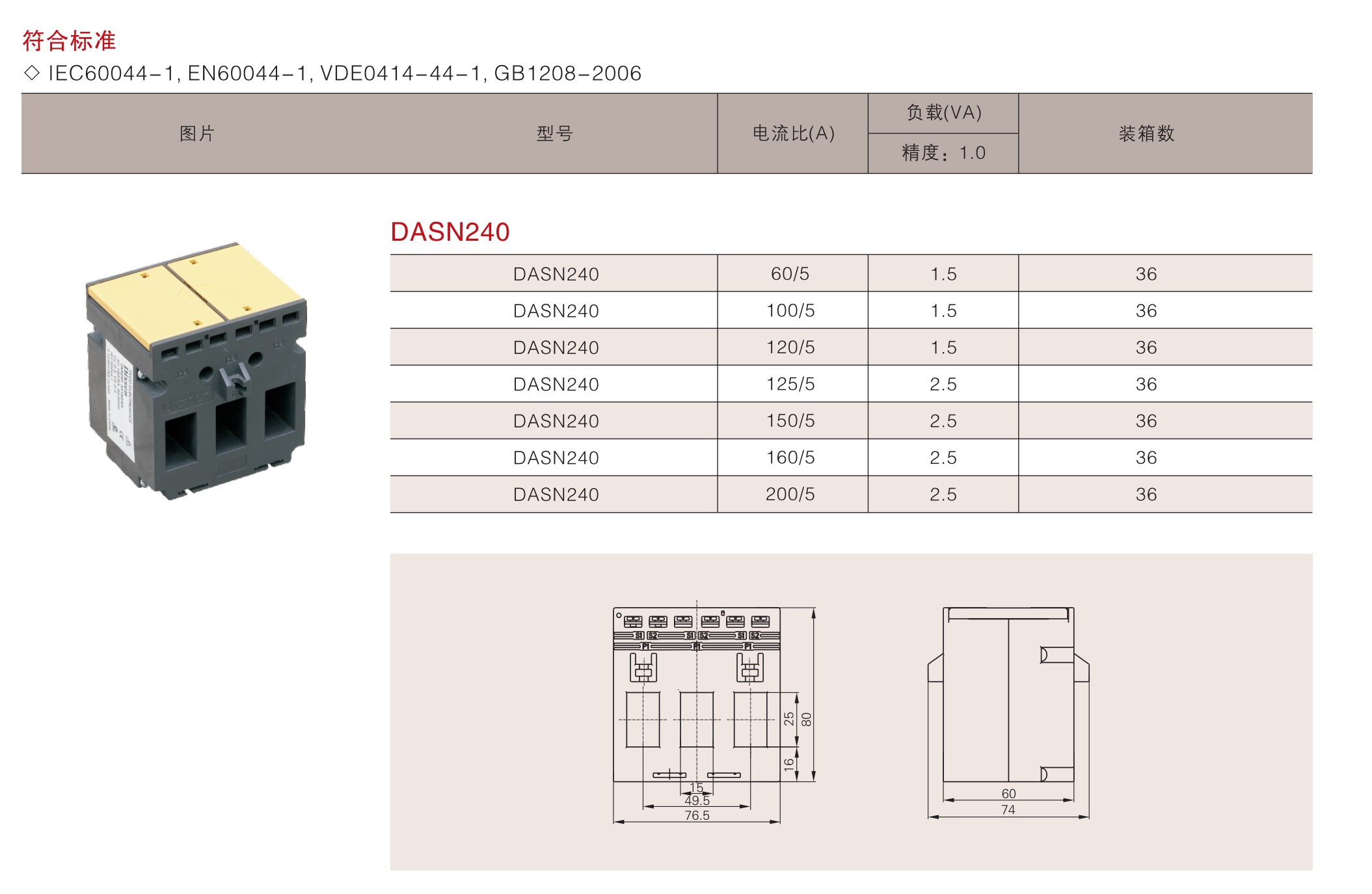

6.International standards IEC/EN 60044-1
7.DIN rail, bus bar or base mounting
8. 3 sizes: 15 x 25mm, 21 x 25mm & 31 x 31mm apertures
Cable apertures from 15.5mm to 31mm
