Loading type mini current transformer

What is load current in transformer?
Even on no load,a small amount of current is drawn from the primary side,to set up the required magnetic flux in the magnetic core.... This current is known as the "No Load Current". The no load current is about 3-5% of the full load current and it accounts for the losses in a transformer.

Operating ambient temperature:-25C -+75.C: Relative Humidity: less than 90%(at 25C);

Altitude: less than 1000m
Rated voltage: 500V; Waveform of tHe Power Supply: Sine wave; Waveform Distortion
Coefficient: Not more than 5%:

There should be no gases, steam, cHemical sediments, dust, filth and any other harmful

medium theriously affect the insulation of No severe shaking and bumping in the operating environment
No strong irrelevant electromagnetic field in the operating environment

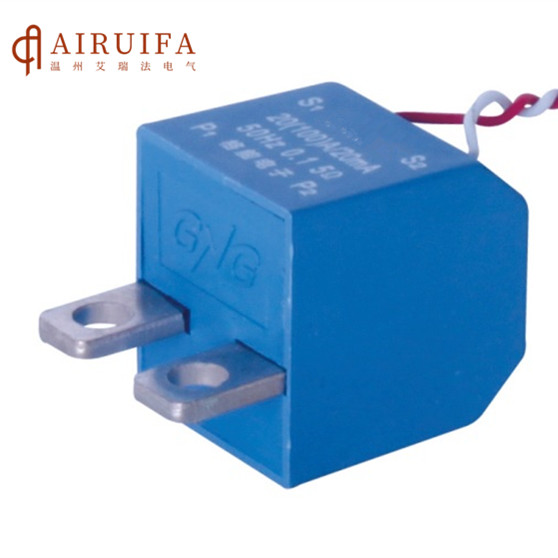

Loading-type current transformer
Suitable for a wide range of current(1. 5A-120A)
1.There are standard holes on the primary lead wire; therefore, can be fixed at the terminal of
the electricity meters with      standard bolts, which makes it both firm and convenient
2.The primary lead wire is highly customer-tailored with more than 100 specifications,
3.Encapsulated with epoxy resin to ensure strong insulation ability
4.Linear output current, high precision
5.PBT anti-combustion platic casing
