Intermediate Relay

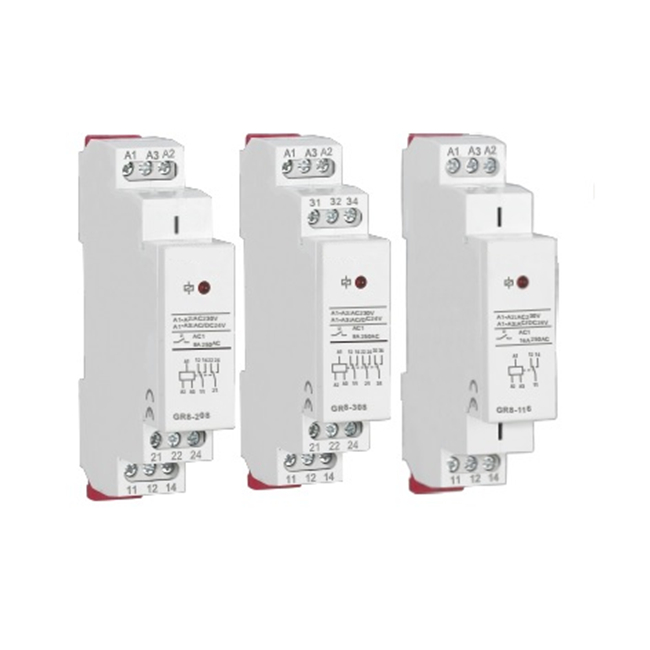

Product description: GR8-116 AC DC 12V 24V 48V 110V 220V Intermediate Relay Auxiliary Relay
INQUIRY

Applications
-intermediate relay used for switching larger load output,
strengthen or multiplying contacts of the existing device.
Function Features
-Voltage range: AC/DC12V,24V,48V,110V,AC230V.
-relays GR8-316 enable connection to a 3-phase circuit.
- Relay status is indicated by LED.

- 1-MODULE,DIN rail mounting.

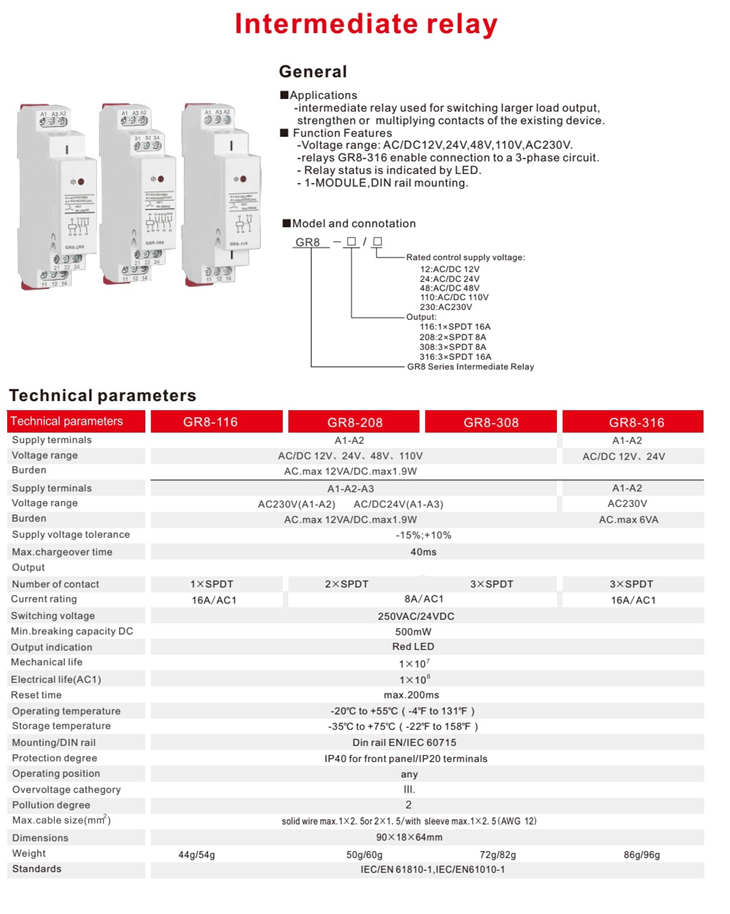

Technical Data

Electrical features

Product Name	Intermediate Relay Auxiliary Relay
Model NO GR8-116	1 SPDT
Model NO GR8-208	2 SPDT
Model NO GR8-308	3 SPDT
Model NO GR8-316	3 SPDT
Function	Switching larger load output
Voltage Range	AC/DC 12V 24V 48V 110V, AC230V
Supply Terminals	A1-A2-A3
Supply Voltage Tolerance	-15% +10%
Time Setting	Potentionmeter
Supply Indication	Green LED
Output Indication	Red LED
Rated Frequency	50/60HZ
Rated Current	8A/AC1
Protection Degree	IP40 for front Panel / IP20 for Terminals
Weight/pcs	0.1KG/PCS
Standard	EN 61812-1,IEC60947-5-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
