DSC Low Cost CT

Does a transformer change current?

Transformers change electricity from one voltage level to another.
But changing the voltage does not change the power.
So when a transformer increases voltage, it decreases current. Likewise,
if it decreases voltage, it increases current.

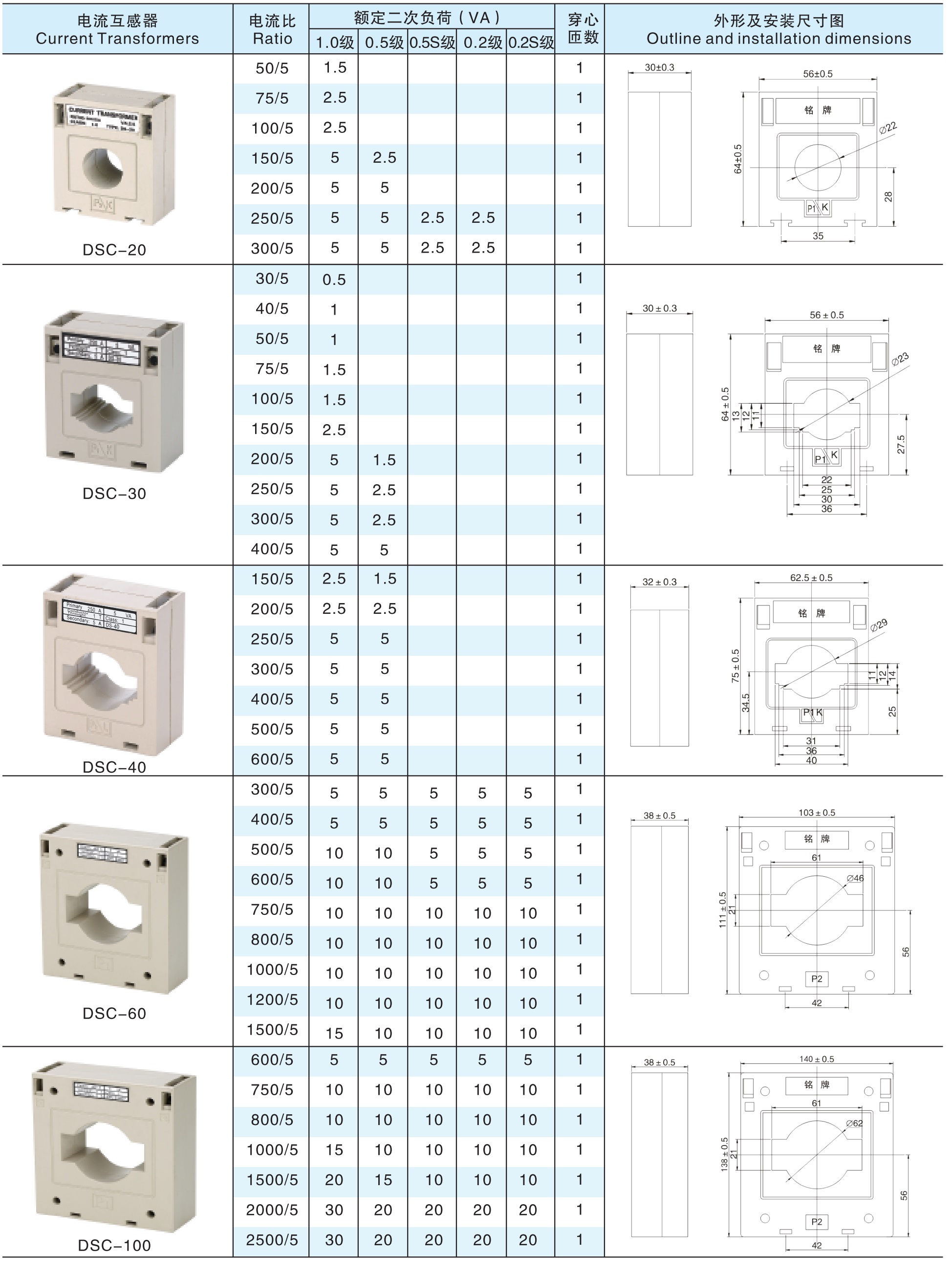

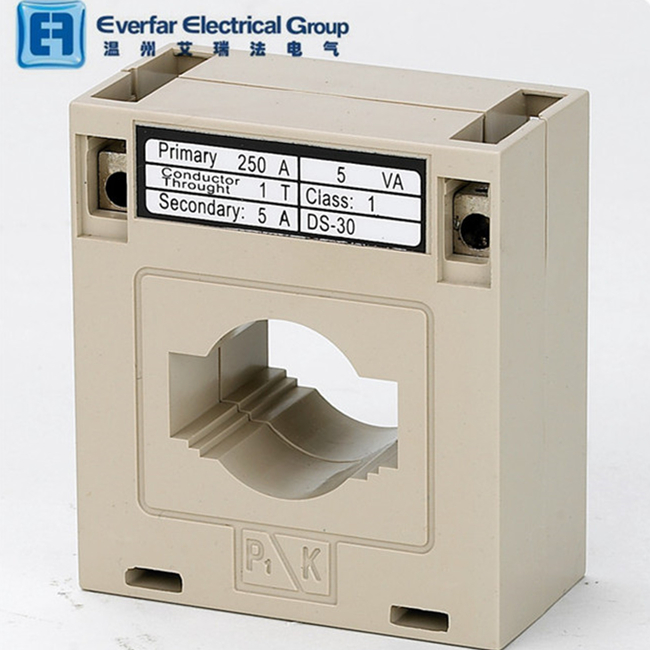

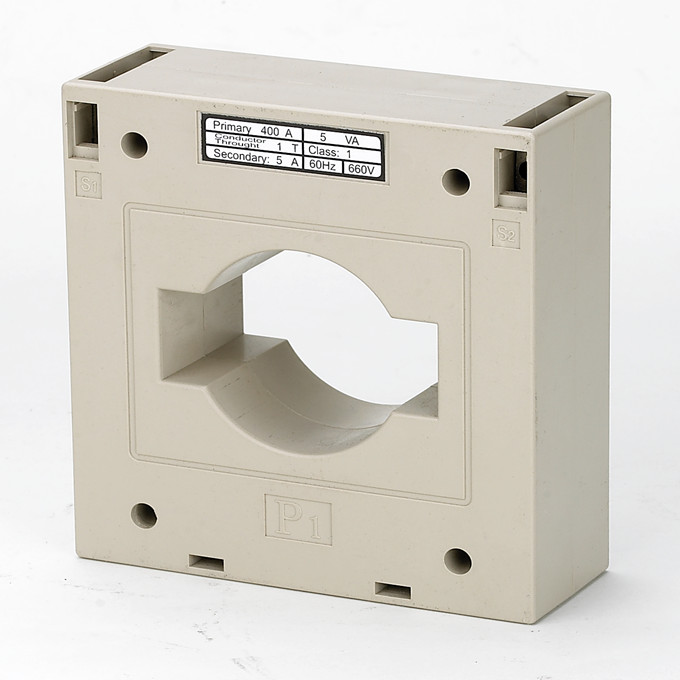

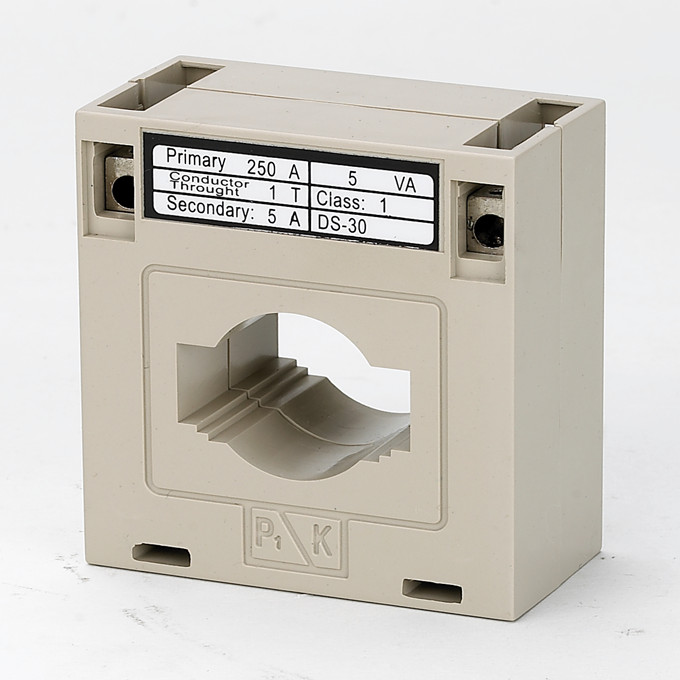

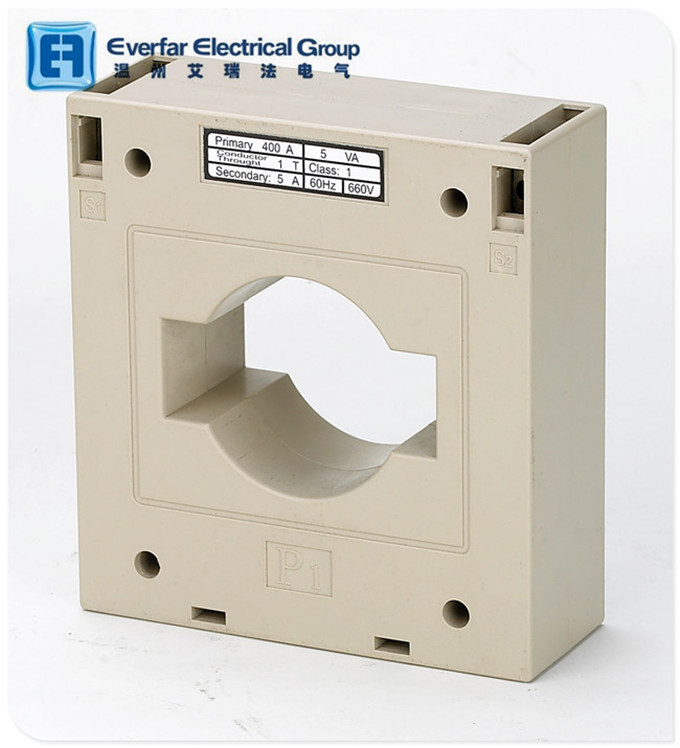

DSC series current transformer is compact.

smaller than other models with the current ratio of the transformer is small,
clamshell-style terminal cover is well protected by the second terminal.
With related accessories you can use Din rail mounting,a current from 5A to 5000A.

Feature
1.Safe,easy to install,portable
2.Wide inner window,allowing clamping of big cables or bus –bars
3.Wide range of sizes to accommodate all the existing installation

Application
1.Current measurement,monitoring and protection for electrical wiring and equipment.
2.Current and power measurement for electric motors,lighting,air compressor,heating and ventilation system,
air-condition equipment and automation-control system.
3.Current,power and energy monitoring device.
4.Relay protection device.
