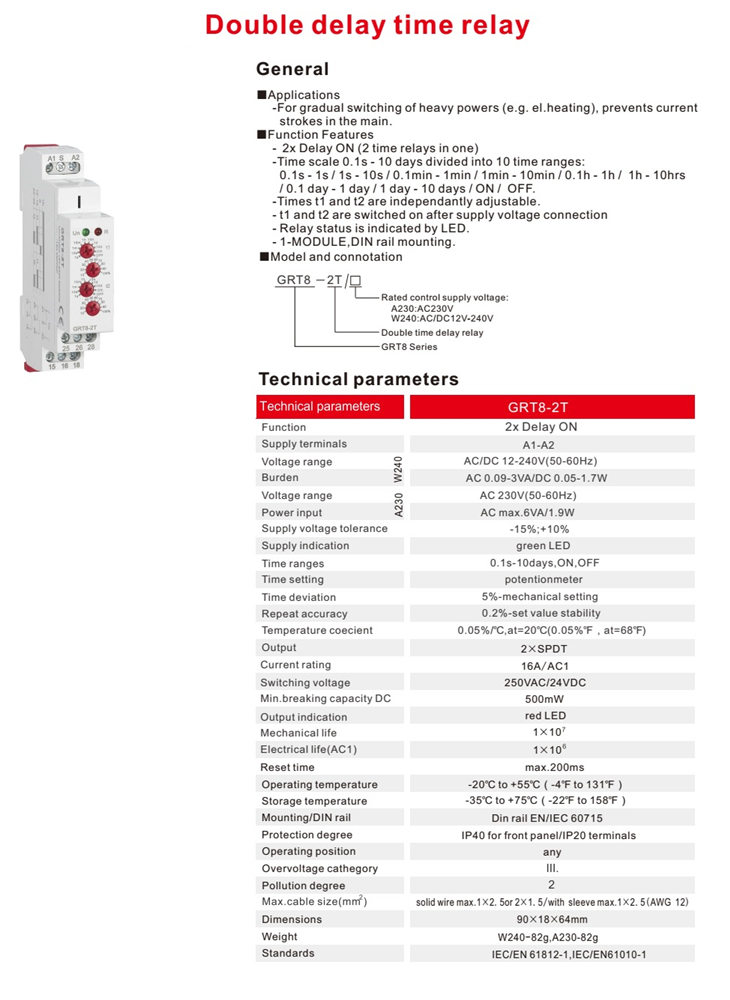

双延时时间继电器

Applications
    -For gradual switching of heavy powers (e.g. el.heating), prevents current
    strokes in the main.
Function Features
    - 2x Delay ON (2 time relays in one)
    -Time scale 0.1s - 10 days divided into 10 time ranges:
    0.1s - 1s / 1s - 10s / 0.1min - 1min / 1min - 10min / 0.1h - 1h / 1h - 10hrs
    / 0.1 day - 1 day / 1 day - 10 days / ON / OFF.
    -Times t1 and t2 are independantly adjustable.
    - t1 and t2 are switched on after supply voltage connection
    - Relay status is indicated by LED.
    - 1-MODULE,DIN rail mounting.

Technical Date

Electrical features
