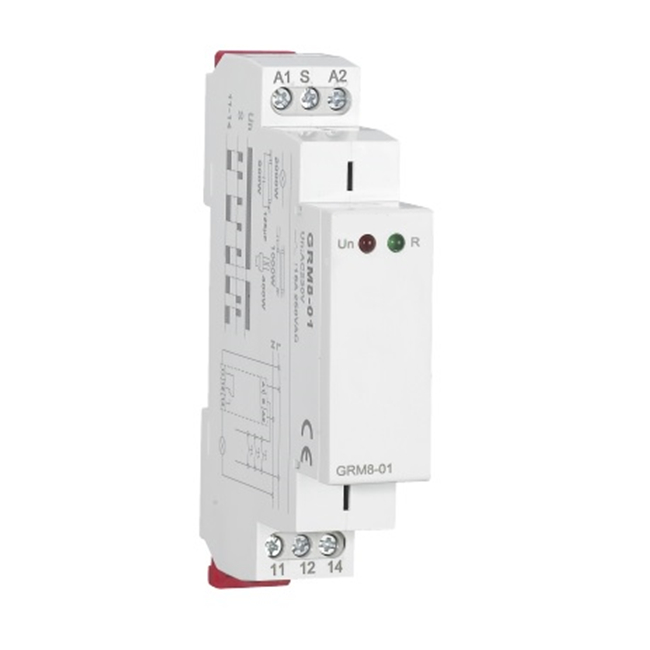

产品描述：闭锁继电器
在线订购

Applications

-latching relay, controlled by buttons from several loacations can replace
three way switches or cross bar switchs thanks to control by buttons(un-
limited number,connected inparallel by 2 wires),installation gets more
transparent and faster for mounting.
Function Features
-Voltage range: AC 230 V,AC/DC12V-240V clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

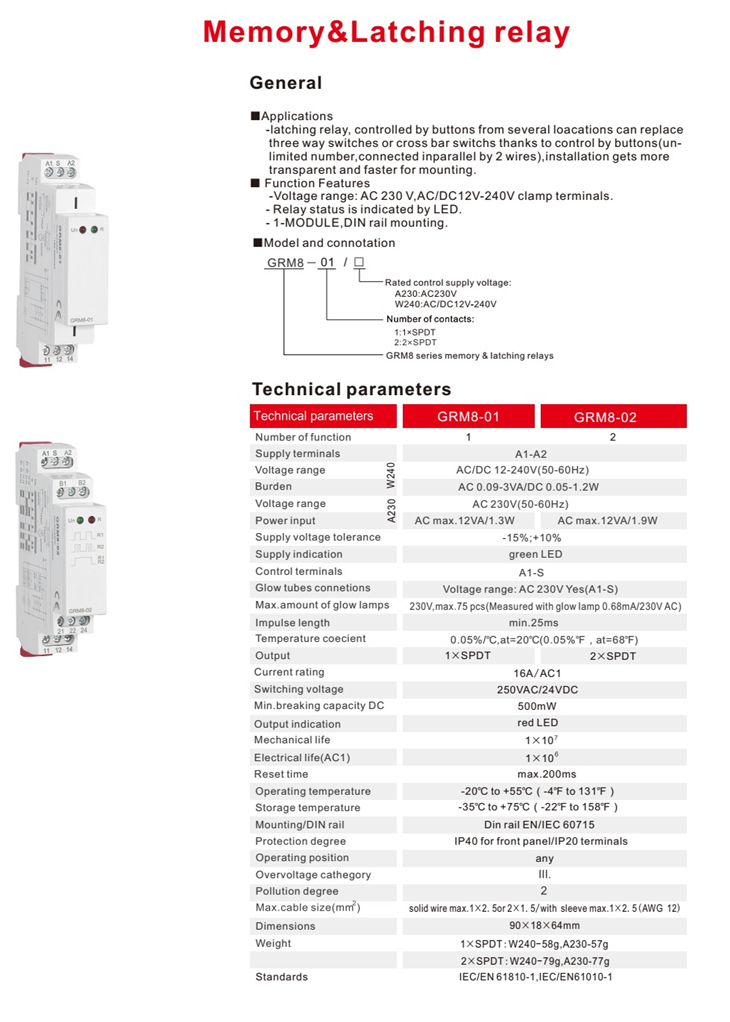

Technical Data

Electrical features

Model NO	GRM8-01 OR GRM8-02
Function	Impulse Relay, Latching Relay, Memory Relay
Voltage Range	AC230V (A230) OR AC/DC12V-240V (W240)
Output	1 SPDT OR 2 SPDT
Supply Terminals	A1-A2
Supply Voltage Tolerance	-15% +10%
Glow Tubes Connections	Voltage range: AC 230V Yes(A1-S)
Supply Indication	Green LED
Output Indication	Red LED
Rated Frequency	50/60HZ
Rated Current	16A/AC1
Protection Degree	IP40 for front Panel / IP20 for Terminals
Weight/pcs	0.1KG/PCS
Standard	EN 61810-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
